Neptec OPAL 3 Performance Series

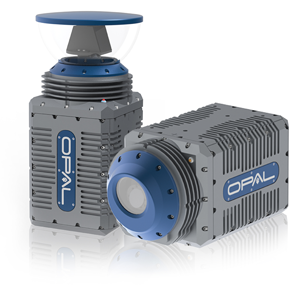

Introducing the completely redesigned OPAL™ 3D LiDAR scanner from Neptec Technologies. Based on the latest innovations in laser optics and intelligent 3D processing, the OPAL™ delivers an unprecedented combination of range, data density, acquisition speed, and obscurant-penetration capability in a smaller, lighter package. The result is one of the most powerful and versatile 3D LiDAR scanners for real-time robotics and autonomous systems specifically designed for harsh environments. The OPAL is available in a number of range models, with conical or panoramic fields-of-view. OPAL™ scanners are fully compatible with the 3DRi™ Software Development Kit (SDK), a library of proprietary algorithms to extract actionable information from the scanners in real-time.
Features
Conical
- Advanced laser optics and 3D processing in a size, weight and power optimized package
- 300,000 points per second, up to 2.1 million returns
- Superior range performance up to 1,000m
- Rugged design with Ingress Protection certified to IP67
- Intuitive 3DRi™ software tools for rapid application development
- Unparalleled performance in dust, smoke, rain and fog
- Reliable low-reflectivity target detection for real-world scenarios
- -40°C to +55°C operating temperature and resistant to shock and vibration
- Integrated multi-core CPU (optional) with PoE and USB ports for GPS/INS and peripherals
Panoramic
- 300,000 points per second, up to 2.1 million returns
- Reliable low-reflectivity target detection for real-world scenarios
- Superior range performance up to 1,000m
- Rugged design with Ingress Protection certified to IP67
- Intuitive 3DRi™ software tools for rapid application development
- Integrated multi-core CPU (optional) with PoE and USB ports for GPS/INS and peripherals
- Unparalleled performance in dust, smoke, rain and fog
- -40°C to +55°C operating temperature and resistant to shock and vibration
- Advanced laser optics and 3D processing in a size, weight and power optimized package
Specifications
| OPAL-P500 | OPAL-P1000 | |
|---|---|---|
| Sensor | ||
| Technology Type1 | Time of Flight (TOF) 3D Laser Scanner with OPAL™ Obscurant-Penetrating LiDAR Technology | |
| Scanning Mechanism | Risley Prisms | |
| Range2 | Up to 500 m | Up to 1000 m |
| Multi-return | Up to 7 returns | |
| Accuracy3,4 | Conical: < 2.5 cm (typical) Panoramic: < 3.5 cm (typical) |
|
| Precision5 | < 2.0 cm (typical) | |
| Field of View6 | Conical: 45°, 60°, 90°, and 120° Panoramic: 360° horizontal FOV, 45° (+5°/-40°) vertical FOV |
|
| Scan Pattern | Rosette type, non-overlapping | |
| Laser | ||
| Product Classification | Class 1 – Eye-safe | |
| Wavelength | 1550 nm | |
| Output | ||
| Pulse Repetition Frequency | 25 kHz, 50 kHz, 100 kHz, 200 kHz, 300 kHz | |
| Data Stream Format | IPv4 Multi-cast UDP packets | |
| Data Format | Time-stamped position (x,y,z) plus intensity | |
| Interfaces | ||
| Ethernet (Integrated GigE switch with PoE) | 4 | |
| PPS (Time Synchronization) | 1 | |
| Physical | ||
| Dimensions | Conical: 17.8 × 17.8 × 33.8 cm (7.0 × 7.0 × 13.3 inches) Panoramic: 17.8 × 17.8 × 45.6 cm (7.0 × 7.0 × 18.0 inches) |
|
| Weight (without cables) | Conical: 11.8 kg (26.0 lbs) Panoramic: 13.2 kg (29.1 lbs) |
|
| Operating Voltage | 18–36 VDC | |
| Power Consumption7 | 110 W (typical), 220 W maximum | |
| Ingress Protection Rating | Certified to IP66/IP67 | |
| Operating temperature8 | -40°C to +55°C | |
| Storage temperature | -40°C to +85°C | |
| Shock | Designed to 5 G’s | |
| Vibration | Designed to 20 Hz – 2 kHz, 0.04 g2 / Hz | |
| Regulatory Compliance |  |
|
1 Performance in obscurants is dependent on obscurant type and density, laser pulse energy, and target characteristics. Please contact NTCSupport@neptec.com to discuss your specific requirements.
2 Achievable maximum range is dependent on target size, reflectivity, angle of incidence, and PRF, measured at the centre of the FOV in clear atmospheric conditions.
3 Accuracy is the degree of conformity of a measured quantity compared to its actual (true) value.
4 Some distortion effects at the edge of the FOV may impact accuracy as follows: <2.5 cm within 100°, <3.5 cm between 100° FOV and 120° FOV. One sigma at 12 m range as measured under Neptec test conditions.
5 Precision, or repeatability, is the degree to which further measurements provide the same result. One sigma at 12 m range as measured under Neptec test conditions.
6 OPAL Conical LiDARs exhibit a small (1° circular) area of distortion at 8° from the centre of the FOV. Data within this area may be excluded via a software feature.
7 Typical power consumption considers the OPAL LiDAR operating at typical processing demands, with no external peripherals connected to available PoE ports. Power available for peripherals connected to the PoE ports is 100 W total.
8 Assumes adequate convection airflow over the unit. For applications in environments exceeding +40°C, please contact NTCSupport@neptec.com to discuss mounting options.
* Specifications are subject to change without notice.
