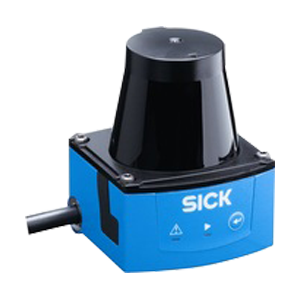

SICK TiM310
The TiM310 is an optoelectronic laser scanner that electro-sensitively scans the perimeter of its surroundings at a single plane with the aid of laser beams. The TiM310 measures its surroundings using two-dimensional polar coordinates based on its measurement origin.
This is marked on the hood in the center using a circular indentation. If a laser beam hits an object, its position in terms of distance and direction is determined.
Features
- HDDM+ measurement principle
- Indoor application
- Infrared (850 nm)
- Laser class 1
- 270° horizontal aperture angle
- 15 Hz scanning frequency
- 1° angular resolution
- Working range of 0.05 m to 4 m
- Scanning range of 2 m at 10% remission
At a Glance
- Configure without a PC using “touch and teach”
- Small, lightweight and economical measurement sensor
- Field evaluation using intelligent algorithms
- Set parameter interface is accessible while device is mounted
- One of the smallest laser scanners on the market
- Proven industrial design
- Low power consumption (type 3 W)
Benefits
- Low cost of ownership
- Easily hidden from view due to small dimensions
- Low installation costs and exchange time due to D-Sub connector
- Long operation for battery-driven vehicles
- Intuitive and preconfigured fields ensure short installation time
- Reduced hardware costs since one sensor can be used for large anti-collision fields
- No wiring necessary between sender and receiver
