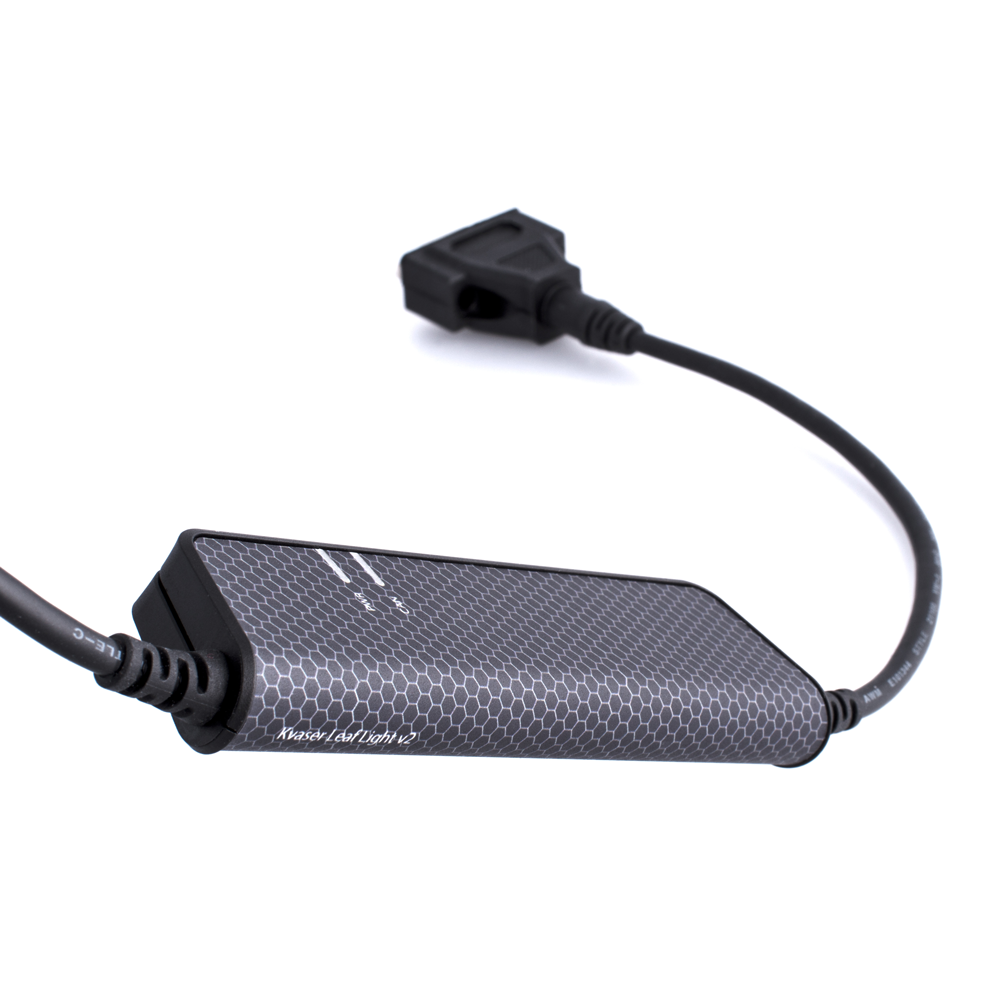

Kvaser Leaf Light HS v2
The Kvaser Leaf Light HS v2 represents one of the easiest and lowest-cost methods of connecting a computer to a CAN bus network. With its USB 2.0 compliant connector and 9-pin D-SUB connector, the Leaf Light HS v2’s sleek, ergonomically designed housing is both robust enough for everyday use and small and flexible enough to be used in space-constrained applications. Now with galvanic isolation as standard.
ROS driver available
Fully supported by your AStuff team
Features
- The Kvaser Leaf Light HS V2 is a high speed USB interface for CAN that offers loss free transmission and reception of standard and extended CAN messages on the CAN bus.
- 8000 messages per second, each time-stamped with 100 microsecond accuracy
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
- Galvanic isolation, previously a more expensive option on Kvaser’s original Leaf Light, now comes as standard on the Leaf Light v2, enhancing protection from power surges or electrical shocks.
- Low current consumption (70 mA) reduces power drain from your laptop.
- Local buffering and preprocessing results in high performance and a reduction of time critical tasks for the PC.
Specifications
| Bitrate | 40-1,000kbps |
|---|---|
| Buffers | On Board Buffer |
| Categories | PC INTERFACES, Interfaces |
| Certificates | CE, RoHS |
| Channels | 1 |
| Connectors | DSUB 9 |
| Current Consumption | 90mA |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Galvanic Isolation | Yes |
| Height | 20 mm |
| Interfaces | USB |
| Length | 100 mm |
| Material | PA66 |
|---|---|
| Messages Per Second Receive | 8,000 mps |
| Messages Per Second Sending | 8,000 mps |
| OS |
|
| Silent Mode | No |
| Sound | No |
| Temp Range | -20 – 70 °C |
| Timestamp R (µ) | 100 µs |
| Weight | 100 g |
