Kvaser PCIEcan 4xHS
Kvaser PCIEcan 4xHS is a highly integrated, high speed CAN network card that adds four high-speed controller area network (CAN) channels to any standard computer board with PCI Express capability. Offering silent mode, error frame detection and an onboard buffer, this small form factor add-on board fits many embedded data acquisition systems and supports CAN FD.
ROS driver available
Fully supported by your AStuff team
Features
- Supports CAN FD
- Quick and easy plug-and-play installation
- Supports High Speed CAN (ISO 11898-2)
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Low profile card (86 x 69 mm) allows ultra-compact systems
- Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate
- Four CAN Hi-Speed channels in a single 26-pin HD D-SUB CAN connector. The HD26 splitter connects to the CAN bus via four 9-pin DSUB connectors

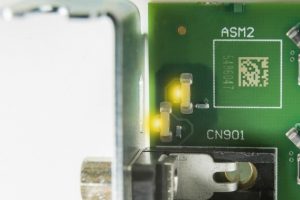

- Four yellow LEDs that indicate when a CAN message was received or sent
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
- Supports silent mode for analysis tools – listens to the bus without interfering
- Detection and generation of error frames and remote frames
- Designed for standard and industrial computers
- Galvanically isolated CAN bus drivers
- Wide operating temperature of 0°C to +85°C
- Supports the Kvaser Linx
Specifications
| Buffers | On Board Buffer |
|---|---|
| Categories | PC INTERFACES, Interfaces |
| Certificates | CE, RoHS |
| Channels | 4 |
| Connectors | 26-pin HD D-SUB |
| Error Counters Reading | No |
| Error Frame Generation | Yes |
| Galvanic Isolation | Yes |
| Height | 20 mm |
| Interfaces | PCI Express |
| Length | 90 mm |
| Messages Per Second Receive | 20,000 mps |
|---|---|
| Messages Per Second Sending | 20,000 mps |
| OS |
|
| Silent Mode | Yes |
| Sound | No |
| Temp Range | -20 – 70 °C |
| Timestamp R (μ) | 1 μs |
| Weight | 100 g |
