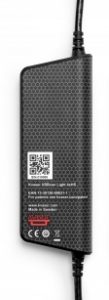

Kvaser USBcan Light 4xHS
The USBcan Light 4xHS is a compact, reliable and cost-effective means of connecting four high speed CAN buses to a PC or mobile computer. With galvanic isolation as standard, this USB to quad channel CAN interface has a standard USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. The supplied HD26-4xDS9 splitter can be used to connect to four separate 9pin DSUB connectors.
ROS driver available
Fully supported by your AStuff team
Features
- Low cost USB CAN interface
- Quick and easy plug-and-play installation
- Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
- Power is taken from the USB bus
- Galvanic isolation
- High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
- Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
- Simultaneous operation of multiple devices
- Includes 4 channel breakout cable
Specifications
| Bitrate | 50-1,000 kbps |
|---|---|
| Buffers | On Board Buffer |
| Categories | PC INTERFACES, Interfaces |
| Certificates | CE, RoHS |
| Channels | 4 |
| Connectors | 26-pin HD D-SUB |
| Current Consumption | 500 mA |
| Error Counters Reading | No |
| Error Frame Generation | No |
| Galvanic Isolation | Yes |
| Height | 68 mm |
| Interfaces | USB |
| Length | 170 mm |
| Material | PA66 |
|---|---|
| Messages Per Second Receive | 8,000 mps |
| Messages Per Second Sending | 8,000 mps |
| OS |
|
| Silent Mode | No |
| Sound | No |
| Temp Range | -20 – 70 °C |
| Timestamp R (μ) | 100 μs |
| Weight | 150 g |
